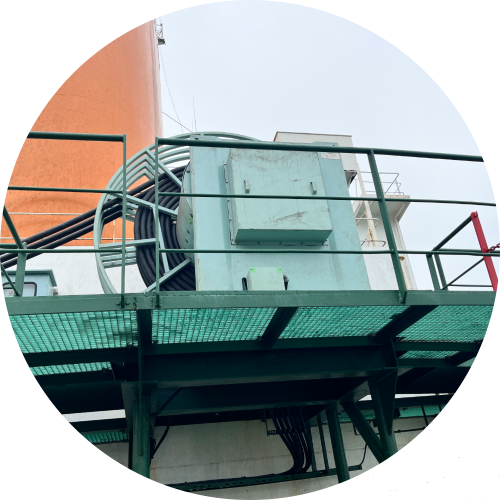

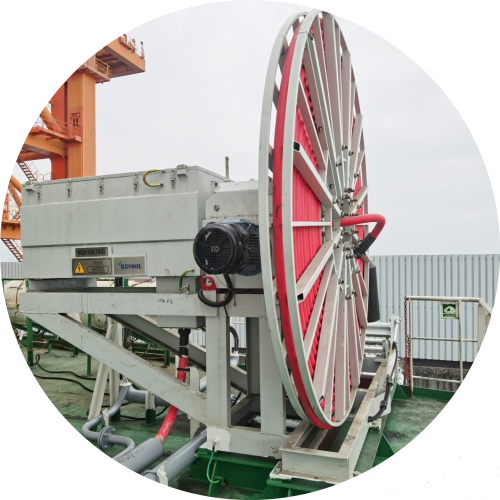

The ship based shore power cable   management system will be installed on the ship side, it used to be installed on   the   up-deck of engine-room; or it can be installed on the deck close to the stern   area;

During ship calling the terminal,  the cables will be reeling out from the cable reel, the cables with plug  assembled  will be reaching the socket box one the shore side and plug-in to close the  shore  power circle;

During ship departure, the cable  reel will be in operation of reeling in and all the cables will be stored in the  drum,  cables will be properly protected for next operation.

Installed on the shipside is in accordance with IEC 80005;

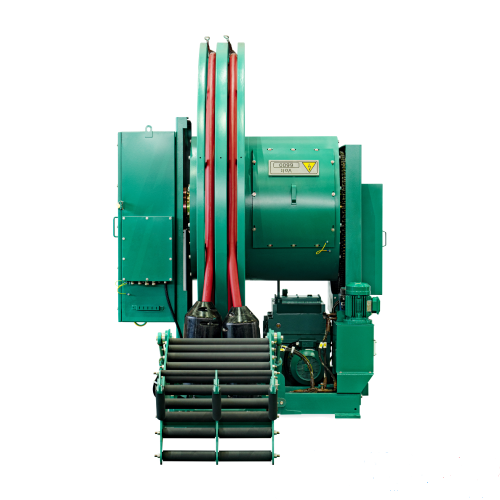

The drive unit is special designed and named as CONSTORQUE, it provids constant toque output to reel in/reel out cables. The drive unit will adapt fast of the drops between ship and shore, and adjusting the cable length according to the actual ship position;

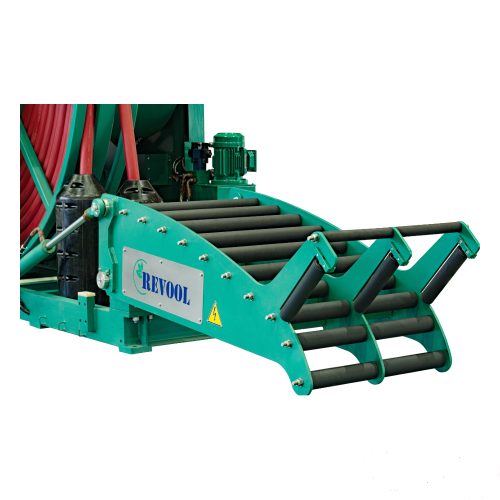

Equipped with special designed and manufactured Revool Splfex, more flexible and reliable for the shore power transmission;

Equipped with standard plugs which designed in compliance with IE80005, can be used globally.

Equipped with standard plugs which designed in compliance with IE80005, can be used globally.

Equipped with standard plugs which designed in compliance with IE80005, can be used globally.

Container ship

Bulk ship

Ro-Ro ship

Ro-Ro passenger ship
